Mikrometr cyfrowy DigiMic 50-75/0.001 mm

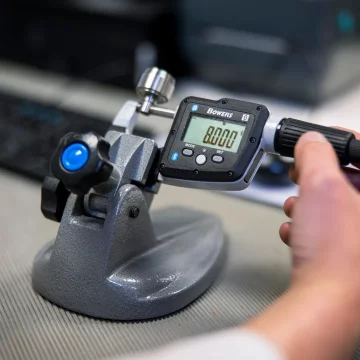

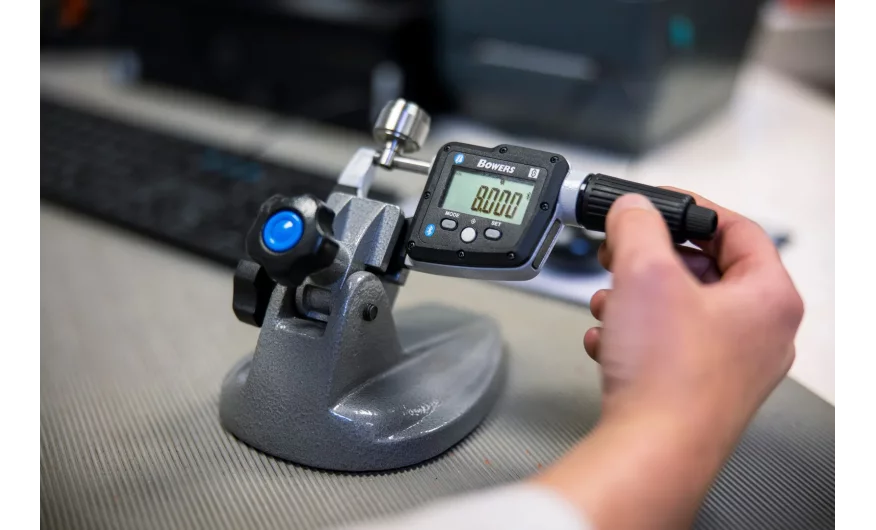

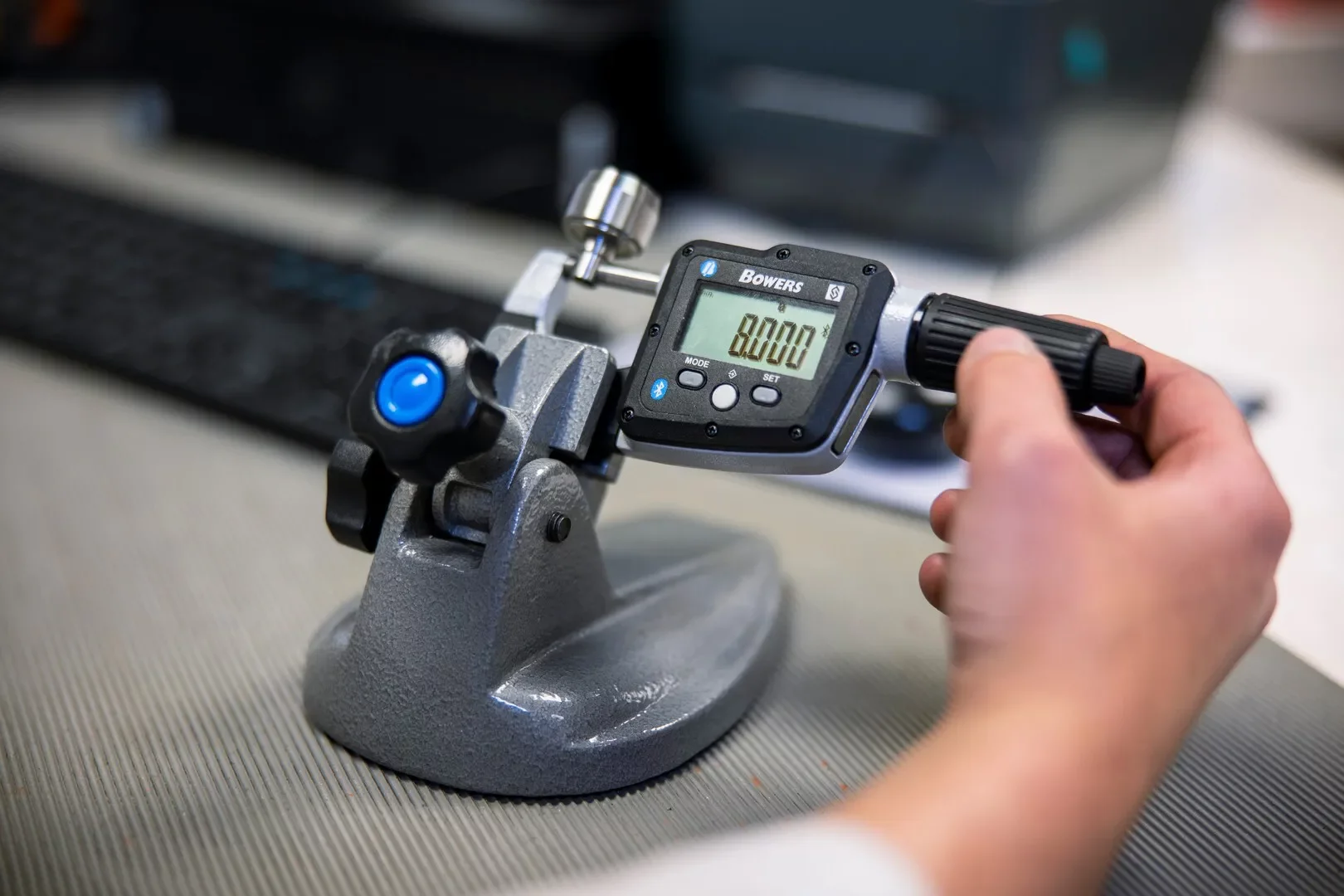

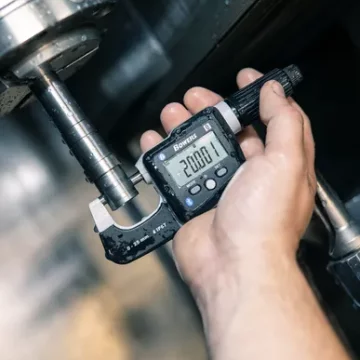

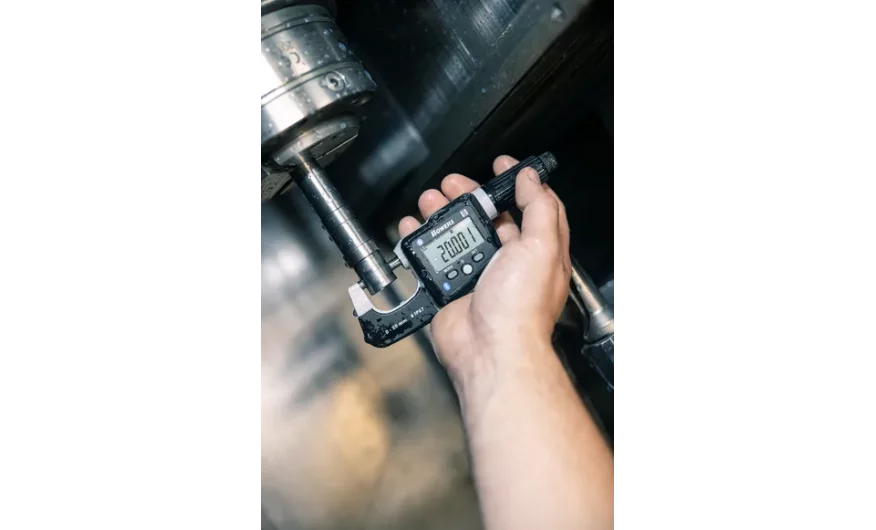

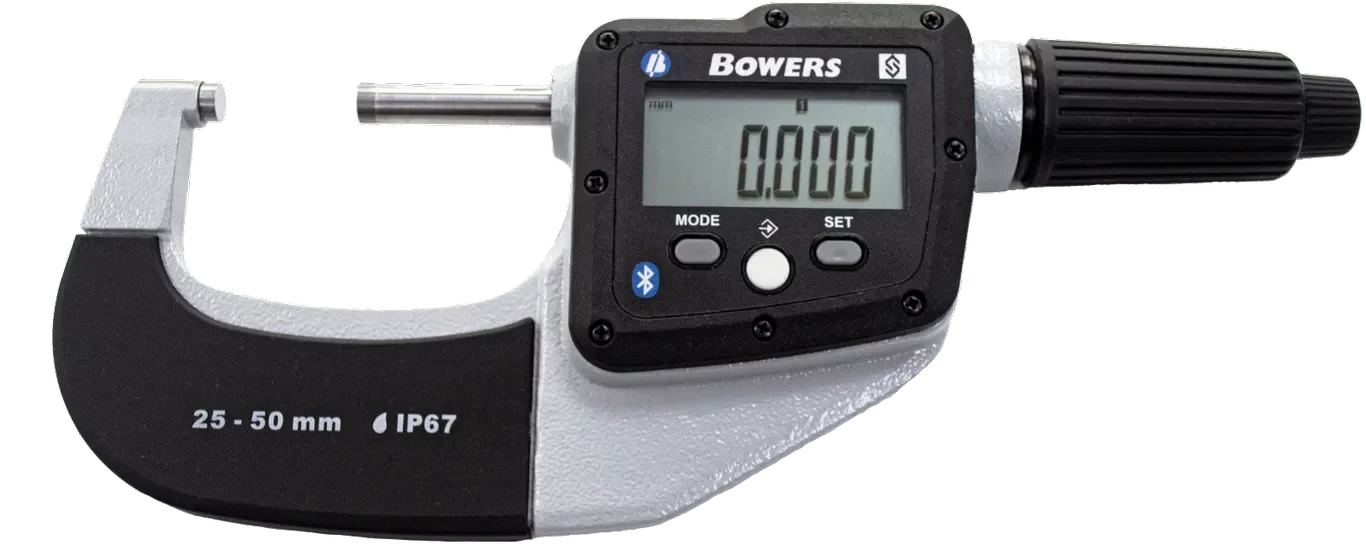

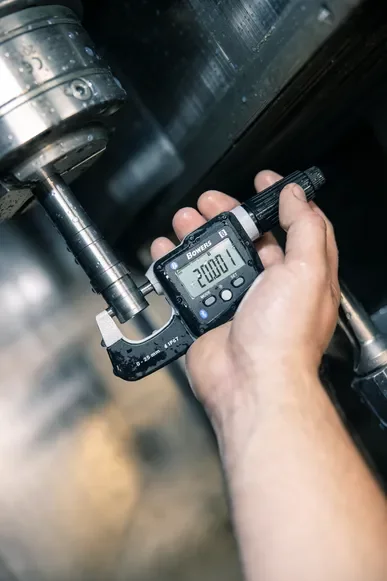

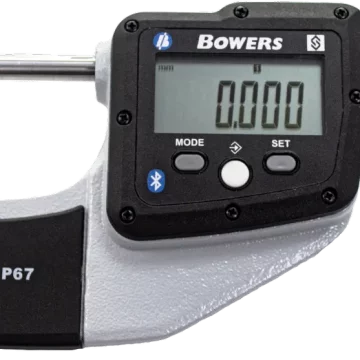

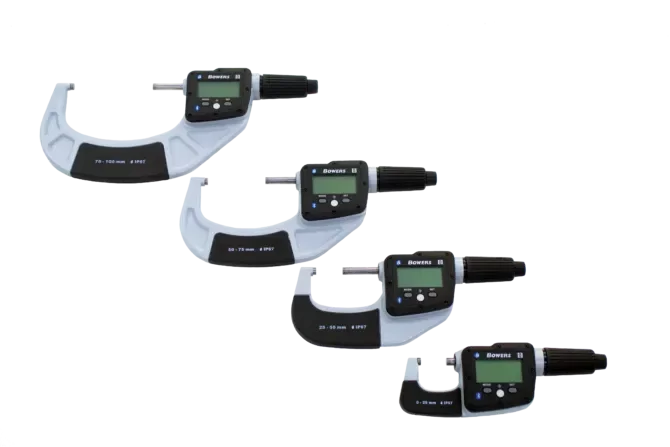

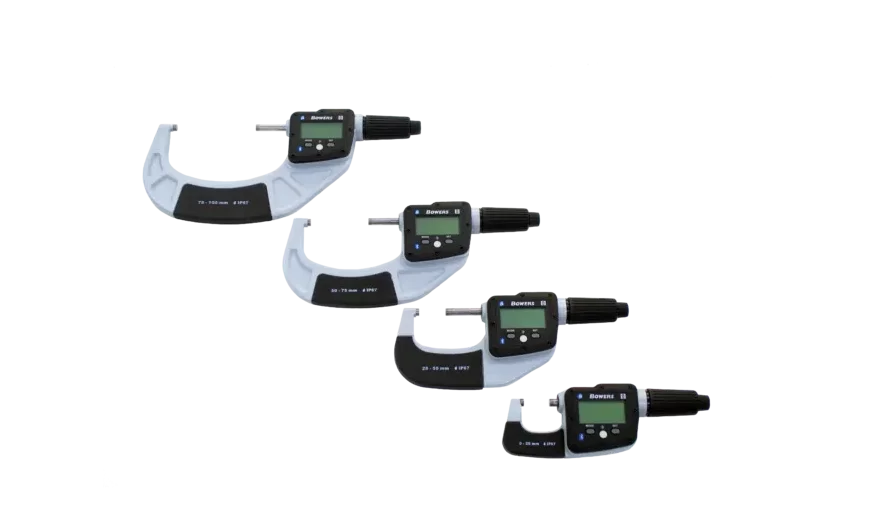

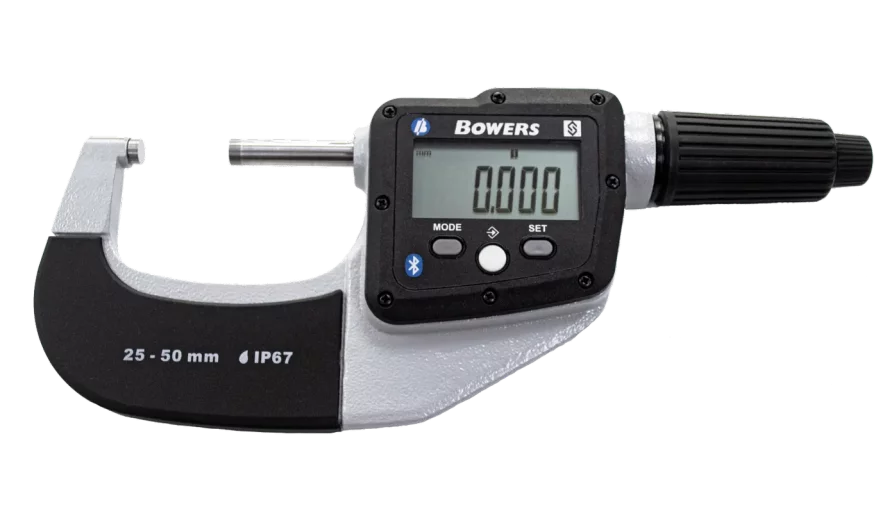

PARTNERS IN PRECISION DIGIMIC EXTERNAL MICROMETER 1 Bowers Group has extended its own manufactured core product range with the introduction of DigiMic, the Bowers digital micrometer. This device boasts an impressive accuracy of 2 μm max permissible error and 2 μ m max error range. Ergonomically designed to fit comfortably in the hand, the DigiMic is an exceptionally robust micrometer, suitable for use in the harshest environments. DigiMic is manufactured with IP67 protection rating making it equally functional in a clean room or the factory floor. The extra-large digital display makes reading data straightforward; the user has an immediate visual confirmation of measurement in hand. The DigiMic belongs to Bowers Group’s existing range of Bluetooth rea dy products, including Bowers bore gauges and Sylvac hand tools. This bi-directional communication capability enables users to link the DigiMi c with a range of IOT ready products. Options include Sylvac's Sylcom software products which range from a free APP enabling data collection o n a smart phone or tablet, to a comprehensive multi-gauge package making data capture for every dimension on the part easy, and reporting efficient. • Bluetooth IOT ready • Compatible with Sylcom software and free mobile app • IP67 protection rating • Resolution 0.001mm • Accuracy - Max permissible error = 2 μm, max error range = 2 μm • Large LCD display • mm / inch conversion • Solid Carbide contact faces • Rotary Encoder & Spindle • Spindle Ø 6.5 mm • CR2032 lithium battery • UKAS to BS 870 certification • Exceeds DIN863/1 & ISO3611 Features DigiMic - Digital External Micrometer Making External Measurement Quick and Easy Interconnected DIGIMIC EXTERNAL MICROMETER 2 Using the micrometer has been made as simple as possible with minimal se t up required. To reduce the battery consumption without losing the current reference position, a standby mode is automatically activated af ter 10 minutes of downtime. DigiMic has an automatic wake up activated by movement on the thimble. This initial launch is for the 0 – 25mm, however incremental sizes up to 100mm will be available in the near future. DigiMic will be sold singularly or in sets. Code Description Max Error Range (mm) B (mm)C (mm) D (mm) L (mm) DM025 0-25mm Digital Micrometer 0.002825 3 35 DM050* 25-50mm Digital Micrometer 0.0021033 3 61 DM075* 50-75mm Digital Micrometer 0.0031146 3 86 DM100* 75-100mm Digital Micrometer 0.0031259 3 112 DMSET100* 0-100mm Digital 4 Micrometer Set As above MODELS AVAILABLE Size Ranges and Further Features Scan the QR code to learn more about the features and capabilities of the DigiMic: * Not yet available, coming soon Watch our video! UN SPECIF IED DIM EN SIO NS A N G ULA R DIM EN SIO NS  0.1 LINE AR DIM ENS IONS  0.1 0m m DATE C AD D IR. Bow ers G RO UP R EM OVE A LL SHA RP CO RNERS D RG . No SC ALE A3 TH IS D O CUM EN T C O NTA IN S P R O PR IE TA R Y D ATA O F B O W ER S M ETR O LO GY L IM IT E D N O D IS C LO SU RE, R EPR O DUC TIO N O R U SE O F A N Y P A R T T H ER EO F M AY B E M AD E E X C EP T B Y W RIT TE N P ER M IS S IO N. DIM ENS IONS IN M M 3r d A NG LE P RO JE CT ION 32 L e ed s O ld R oa d, B ra dfo rd B D 3 8 H U D RG . No DR AW N Issue No . M ATE RIA L H EAT T REATM EN T S URF ACE TRE ATM EN T S U RF ACE FINIS H um CLA TIT LE O UTLIN E D RAW IN G 0 -2 5m m D ig iM ic I.C LA YTO N 2 4 /0 6/2 021 1 04-3 -2 5-B O W / // 01 1 .6 1 :1 1 0 4-3 -2 5-B O W L: B O W ER SG AU G IN G E XTE R N AL D IG IT A L M IC D ig iM ic D ra w in g s1 04 -3 -2 5 -B O W .id w D RG . L O CATIO N : - 5 6 70 L 2 0 C B D 4 0 1 3.7 2 6 .8 2 0 9 10 6 .5 2 4 14 .5 Ø S H EET 2 O F 3 - C ATA LO GUE DIGIMIC EXTERNAL MICROMETER DIGIMICBROCHURE/21
